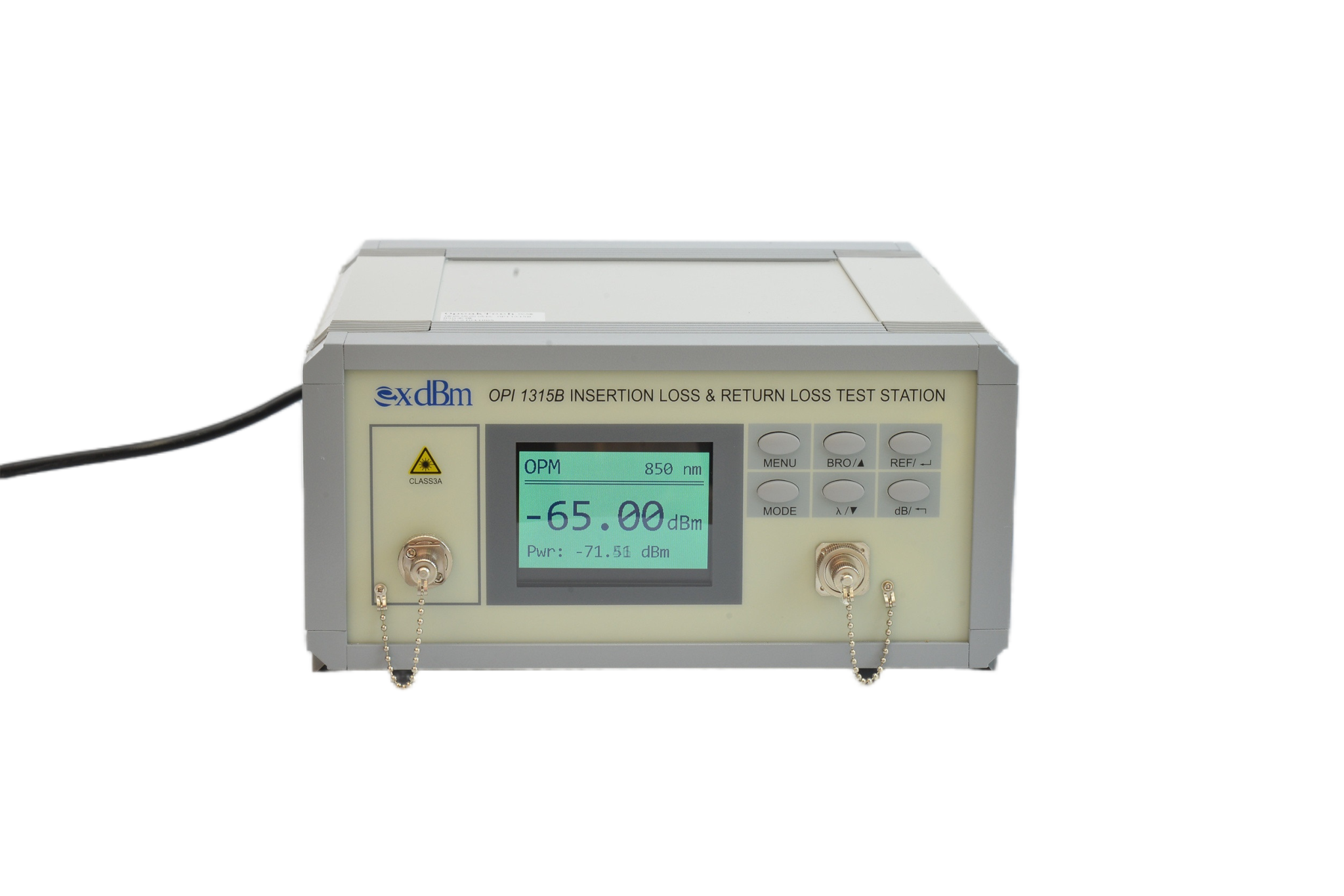

OPI 1315B 插回损仪

OPI 1315B 插回损仪

免费联系电话
0769-22231952

    产品概述

OPM4000台式可调光衰减器主要用于DWDM系统的通道平衡、功率均衡、增益斜率和功率调整,以及 AWG & PLC元器件、光放大器和其它通用光纤的光学测量和应用


OPM4000可提供0 ~ 60 dB的连续可调谐的大动态衰减范围,具有性能高超、尺寸小巧、启动快速和价格实惠的特点。Opeaktech可提供小功率,大功率,单通道和双通道的光衰减器模块供选择,也可为客户提供多达16通道的主机控制方案。


The OPM4000 Desktop Variable Optical Attenuator offer superior performance for channel balance, power equalization, gain tilt and power adjust of DWDM system, EDFA, AWG & PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications.


The OPM4000 provides 0 ~ 60 dB continue tuning large dynamic attenuate range. It becomes a High Performance, Small Dimension, Fast Startup, Affordable optical attenuator test system. It provides low power, high power, single channel and dual channel optical attenuator modules options. Opeaktech also can provide high channel count solution up to 16 channels.



规格指标


型号 Model

OPM4000B

波长范围 Wavelength Range

1310 / 1490 /1550 /1625 nm

衰减范围 Attenuator Range

0 ~ 60 dB

插损 Insertion Loss

<2.5 dB

光纤类型 Fiber type

9/125 um single mode

连接器类型 Connector Type

FC/APC Connector

衰减精度

Attenuator Accuracy

<= +/- 0.1 dB   typ (0 ~ 40 dB)

最大输入功率

Maximum input power

<=25 dBm

偏振相关损耗

Polarization Depend Loss

<= 0.1 dB (0 ~ 40 dB)

偏振模色散

Polarization Mode Dispersion

5 fs

回损 Return Loss

> 40 dB

校准周期

Recalibration Period

2 years

工作温度

Operation Temperature

0 +40℃

存储温度

Storage Temperature

-30+80℃

电源功率 Power

220 V

产品尺寸 Dimensions

200 mm W, 105 mm H, 250 mm D

重量 Weight

2 kg



产品文档下载

OPI1315使用说明书V2.pdf
